Product Description

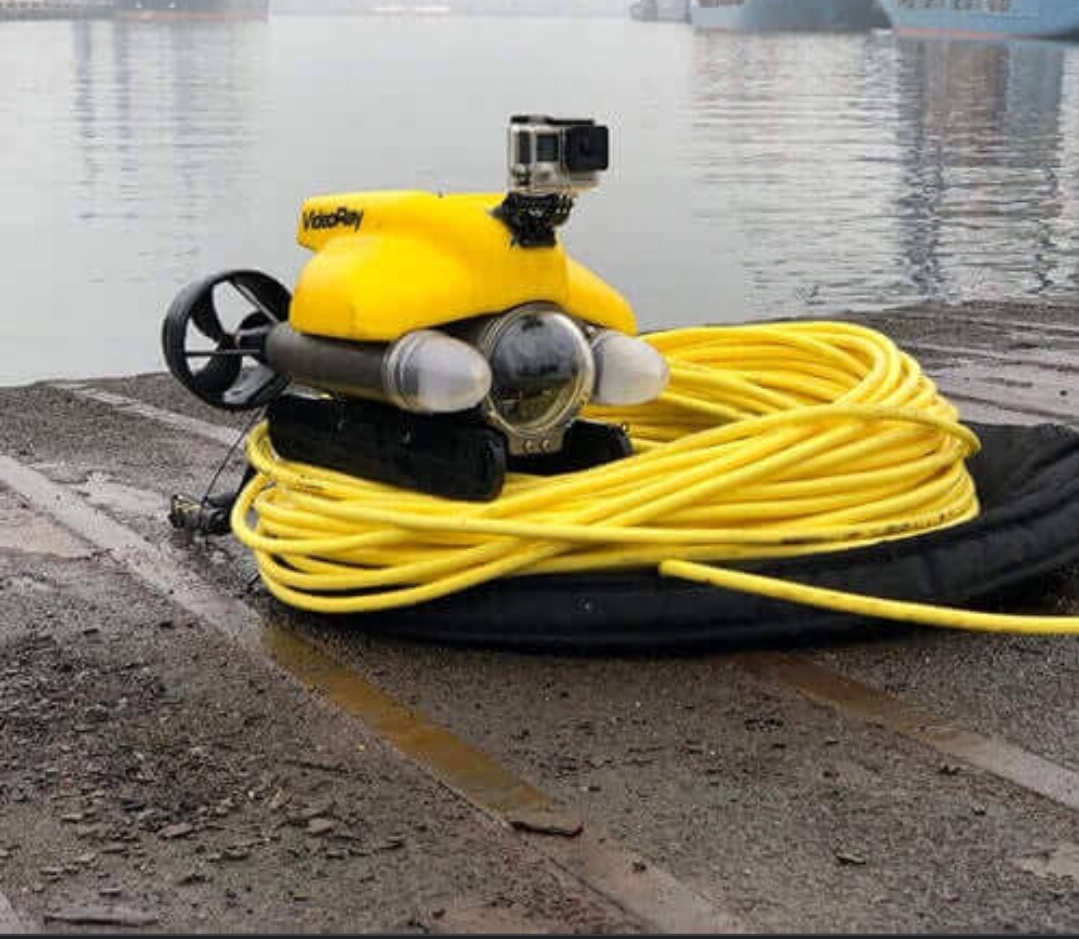

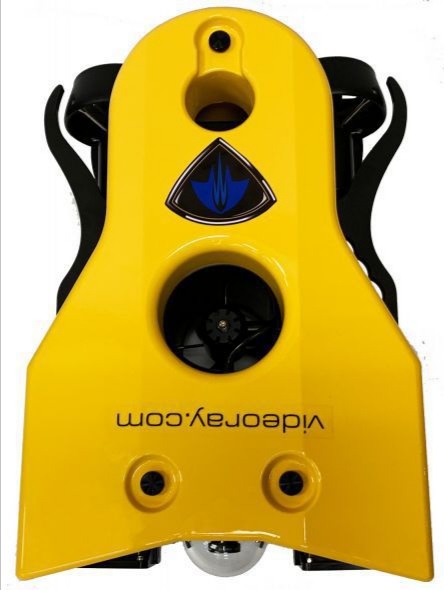

The VideoRay Mission Specialist Pro5 ROV configuration, meticulously crafted for speed and efficiency, boasting a weight of 10kg (22lb). This system features a powerful three-thruster setup with a forward speed exceeding 4.4 knots, all managed through an intelligent network of interchangeable, modular components.

Engineered to tackle missions with constraints on size, space, weight, and deployment speed, the Pro 5 ROV is your go-to solution for tasks such as infrastructure inspections beyond diver reach, search & recovery operations, exploring ocean depths up to 305m, and more.

System Specifications: Submersibles

• Depth Rating: Up to 305m (1,000ft)
• Weight: 10 kg (22 lbs)
• Ballast: Modular

Camera

• HD with Ethernet interface (IP)
• Resolution: Up to 1920 x 1020, 25 FPS
• Features: White balance control, up to 16X Digital Zoom (64 steps), 13 Megapixels Still Image Capture
• Sensitivity: Less than 1 flux (standard)
• View Angle: 160 degrees Tilt (180 degree FoV)

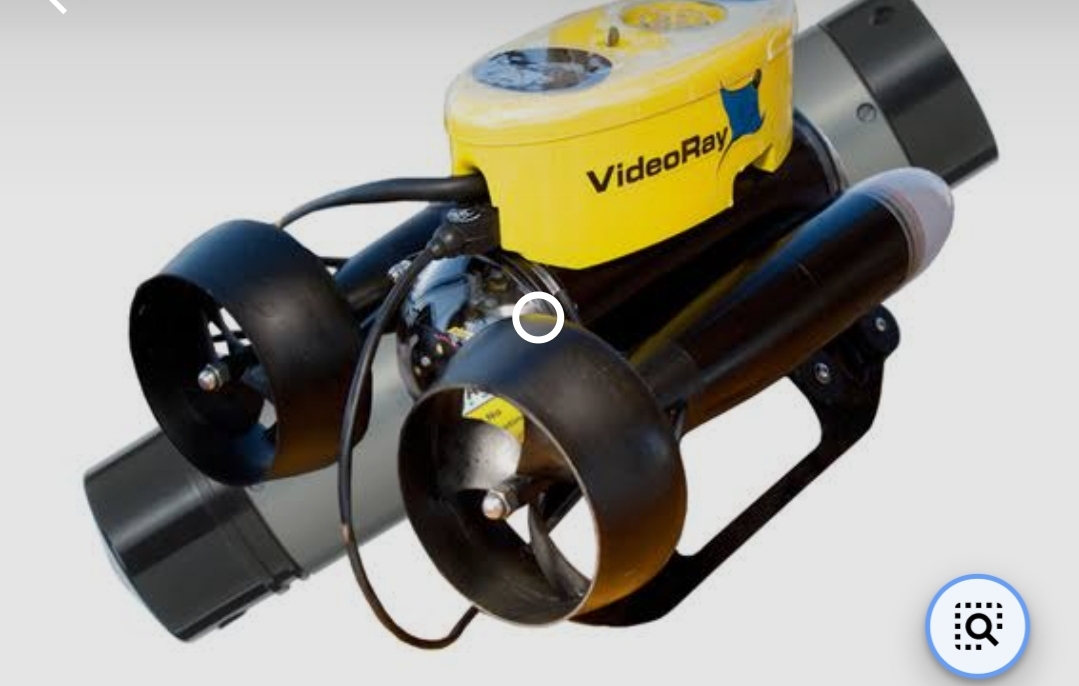

Propulsion

• Brushless thrusters with integrated controllers
• Configuration: 2 vectored Horizontal Thrusters, 1 vertical thruster
• Forward Thrust: 20.3kg (44.7 lb)
• Max Speed: >4.4 knots

Power

• 400 VDC power module
• Power Output: 1500w @ 48VDC
• Monitoring: Full monitoring of input voltage, output current, temperature

Communication

• Ports: 3 x 100Mbps Ethernet ports, 3 x RS-485 ports
• Features: Power control and monitoring

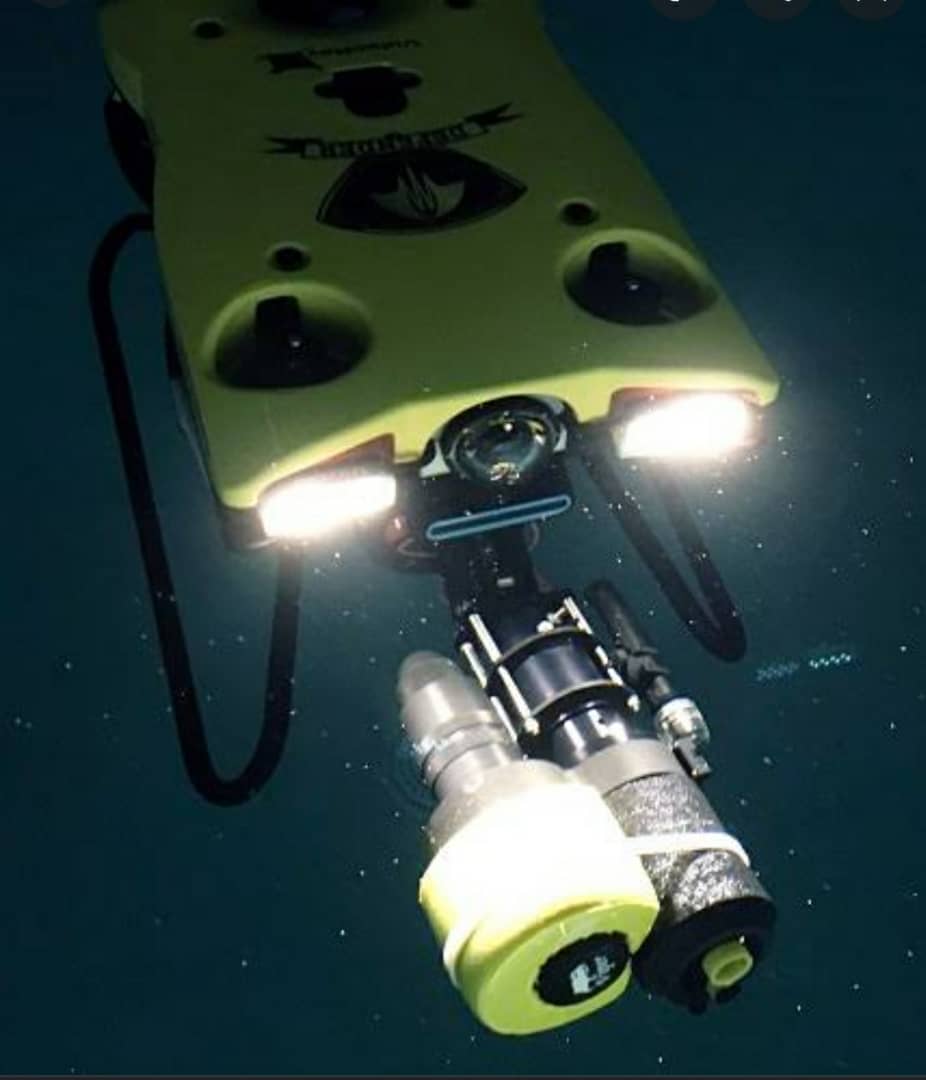

Lighting

• Type: LED
• Arrays: 2 independent light arrays each at 38 watts max
• Beam Angles: 60-degree spot beam, 110-degree flood beam
• Control: Each array can be individually controlled
• Lumens: 7,600 total lumens per LED light module

Tether

• Length: 100m (328ft) natural buoyancy performance
• Sections: Single
• Diameter: 9.6mm
• Breaking Strength: 680kg (1,500 lb)
