Product Description

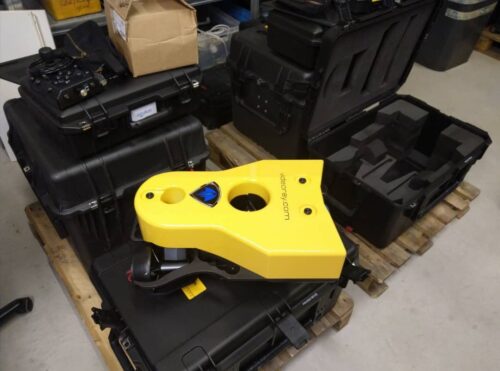

The Pro4 Standard BASE Remotely Operated Vehicle (ROV) system, meticulously designed to swiftly and efficiently execute various fundamental underwater operations. It is engineered as a portable and budget-friendly solution, the Standard BASE ROV system ensures rapid deployment, capable of being maneuvered by a single operator when required.
Included in the Pro 4 Standard BASE system are the Pro 4 submersible, Pro 4 Integrated Control Box (ICB) featuring a Dell i5 computer preloaded with VideoRay Cockpit control software, and an industrial hand controller.
Equipped to accommodate a wide array of VideoRay accessories, the Standard BASE configuration can also be enhanced to integrate sonars, with the choice of tether configuration left to the user.
System Specifications:Submersible
- Dimensions: Length – 37.5cm (14.75in), Width – 28.9cm (11.4in), Height – 22.3cm (8.75in)
- Weight: 6.1kg (13.5cm) [with Full Ballast Set]
- Ballast: Ballast System with Complete Stainless Ballast Set
Propulsion
- Configuration: 3 thrusters (2 horizontal/1 vertical)
- Motor Type: Brushless
- Thrust: 21lb
- Speed: 4.2 knots
- Propeller: 100mm Propellers/65mm Propeller
Lighting
- Type: Optimized LED Arrays
- Number of Sources: 2
- Camera Coverage: Forward-looking Beam Spread covering entire range of Main Camera
- Lumens: 3,600 lumens per light (7,200 total)
Camera
- Main High Resolution: NTSC or PAL Format
- Color Mode: Wide Dynamic Range Digital Slow Shutter White Balance 20+ Real Time Camera Settings Sensitivity
- Color Mode Sensitivity: 0.004 Lux
- B&W Mode Sensitivity: 0.0001 Lux DSS
- View Angle: 90° Horizontal, 140° Diagonal
- Vertical Tilt: 180° Control
